50Ω SMA Plug Aerospace RF Connectors up to 18GHz Mating for Cable CXN3506 MF108A
|
商品の詳細:
お支払配送条件:
|
詳細製品概要
| 製品名: | SMAストレートケーブルコネクタ | モデル: | SMA-J506AG |
|---|---|---|---|
| 周波数範囲: | 0.3MHz～18GHz | インピーダンス: | 50Ω |
| DWV: | 1000V | 絶縁抵抗: | ≧5000MΩ |
| 中心導体: | ≤3mΩ;銅合金、金メッキ | 外部導体: | ≤2mΩ;銅合金、金メッキ |
| 交尾ケーブル: | CXN3506ケーブル | 絶縁体: | PTFE |
| サンプル: | 在庫あり | VSWR: | ≤1.3 |
| 挿入損失: | ≤0.3dB | 温度: | -55°C~125°C |
| 耐久性: | 500サイクル | ||
| ハイライト: | 50Ω SMA RF connector,Aerospace RF connector up to 18GHz,SMA plug for cable mating |
||

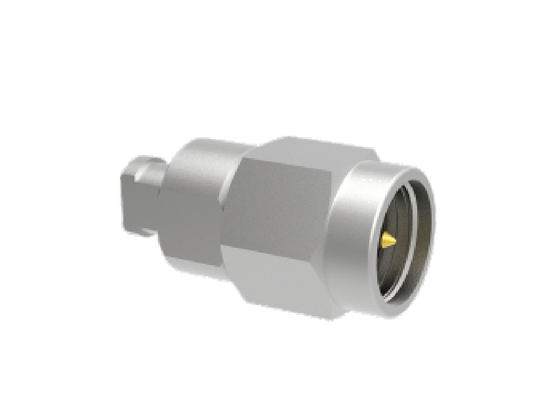

50Ω SMA Plug Aerospace RF Connectors up to 18GHz Mating for Cable CXN3506, MF108A (Cable OD2.3)
The SMA product series RF coaxial connector is a compact high-frequency coaxial connector with an operating frequency up to 18 GHz. It features small size, wide frequency bandwidth, excellent mechanical and electrical performance, and reliable connection. It is one of the most widely used RF coaxial connectors, and is extensively applied in aviation, aerospace, marine and other fields.
SMA Design Features
- Compact design
- Frequency band operation up to 18GHz
- Rugged construction for reliability, Screw 1/4-36UNS-2A
- Available in multiple configurations: straight, right angle, bulkhead, PCB and flange mount options
- Low VSWR & Insertion loss
Interface of SMA RF Coaxial Connectors
SMA Male RF Coaxial Cable Connector Mating Cable CXN3506, MF108A, OD2.3mm:
We also have connectors mating for different cable with cable OD 2.2mm, 3.65mm, 4mm....
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronic specializes in systematic interconnection solutions for demanding industries including:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication systems
- Measurement instruments
- Electronics applications
Packaging & Shipping
Each SMA aerospace RF Connectors is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
For additional similar product models information, please check our catalog or contact our sales team at:
sales3@xa-elite.com.cn
sales3@xa-elite.com.cn
