Full Radius Glass To Metal Seal Connectors RF feedthrus for Hermetic Packaging M2816-29-JH
|
商品の詳細:
お支払配送条件:
|
詳細製品概要
| Product Name: | Glass To Metal Hermetic Seals | Pin: | Single |
|---|---|---|---|
| Pin Tip Options: | Full Radius | Certificate: | ROHS ISO-9001-2015 |
| Plating: | Gold Plated | DC Feedthrus: | Kovar 4J29 |
| Glass: | 7052, 7070 | Hermecity: | 1 x 10-9 ccHe/sec @ 1 atm |
| ハイライト: | Glass To Metal Seal Connectors,Hermetic Packaging RF feedthrus |
||

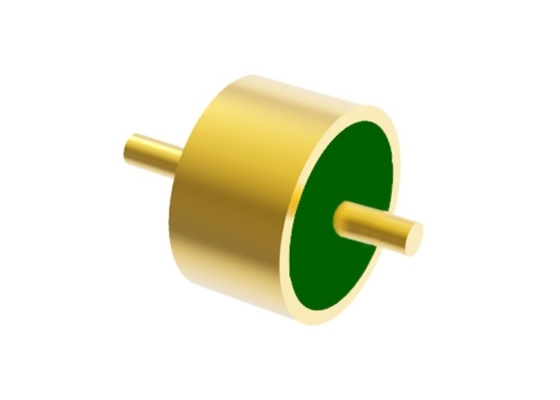

Full Radius Glass To Metal Seal Connectors RF feedthrus for Hermetic Packaging
Full Radius Glass To Metal Seal is also called Glass insulator. They are mainly used to transmit microwave signals, power signals and control signals between modules and modules, modules and components with gas sealing requirements. They are one of the most critical components in sealing components.
 |
|
The glass with low dielectric constant and low dielectric loss is used as insulating and supporting material. The housing and conductor is made of Kovar alloy that sintered under high temperature, and the surface is gold plated. The center conductor has a variety of termination styles such as gold wire bonding, soldering and mating etc. Glass insulators are small, lightweight, hermetic, high reliable and have been widespread in electronics manufacturing industries in recent years.
Specification:
| Product Name | Full Radius Glass To Metal Seal |
| Impedance | RF |
| Type | Single |
| Pin Tip Options | Full Radius |
| Plate | Gold plated |
| DC Feedthrus | Kovar 4J29 |
|
Glass material
Glass Color
|
7052 or 7070
Green or White
|
| VSWR | NA |
|
Hermeticity Leak Rate |
< 1.01325 X 10-3 Pa*cm3/s |
| Withstand Voltage | ≥300V |
| Insulation Resistance | ≥2000MΩ for single pin, ≥1000MΩ for multi-pin, |
| Operating temperature | -65℃~+260℃ |
Features:
-Hermetic
-Stable quality and high reliability
-Small size
-lightweight
-Gold wire bonding, soldering and mating method for choice
Application:
Wide usage range of electronics packages, electronics countermeasures, missiles, satellites, radar and other in military, aerospace, avionics, automotive and other filed. It can be used with SMA, millimeter wave products.
Advantages:
-Strict tolerance control
-Standard and custom design for choice.
-Military Grade with 1.27um gold plated
-Large stocks for standard sizes
-Fast delivery for custom products
-High cost-effective products and services
-Standard and custom design for choice.
-Military Grade with 1.27um gold plated
-Large stocks for standard sizes
-Fast delivery for custom products
-High cost-effective products and services

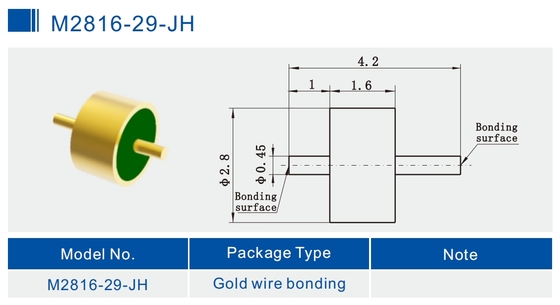

Detailed Image
Unit: mm
Product List: Catalog-Glass-to-Metal Hermetic Seals.pdf
| M2816-29-JH | Soldering Mating and Bonding choice |
| 50Ω RF Single-pin JM Standard Series | Soldering Mating and Bonding choice |
| 50Ω RF Single-pin JM Non-Standard Series | Soldering Mating and Bonding choice |
| DC Single-pin JK Series | Soldering and Bonding choice |
| DC Single-pin JK Standard Series | Soldering and Bonding choice |
| DC Single-pin JK Non-Standard Series | Soldering and Nail Head Bonding choice |
|
Multi-pin Header JMC Series
|
1-9 pins with 1-3 rows choice |
| Custom dimensions |
Welcomed |
NOTE:
We have over 100,000 types of Hermetic Glass To Metal Seal Connectors, if the connector you are using is not found, please contact us with your details.
