50Ω Hermetic glass dielectric SMPM Male Full Detent Bulkhead RF Coaxial Connector up to 40GHz
|
|
商品の詳細:
お支払配送条件:
|
詳細製品概要
| 製品名: | SMPMオスのバルクヘッドコネクタ | モデル: | SSMP-JYD18 |
|---|---|---|---|
| インピーダンス: | 50Ω | インターフェースフォーム: | フルディテント |
| 定格電圧: | 170V | 周波数範囲: | 0.3MHz~40GHz |
| 絶縁抵抗: | ≧5000MΩ | DWV: | 500V |
| 中心導体: | カバル合金、金メッキ | 外部導体: | カバル合金、金メッキ |
| ハイライト: | 50Ω SMPM RF coaxial connector,hermetic glass dielectric SMPM connector,SMPM bulkhead RF connector 40GHz |
||

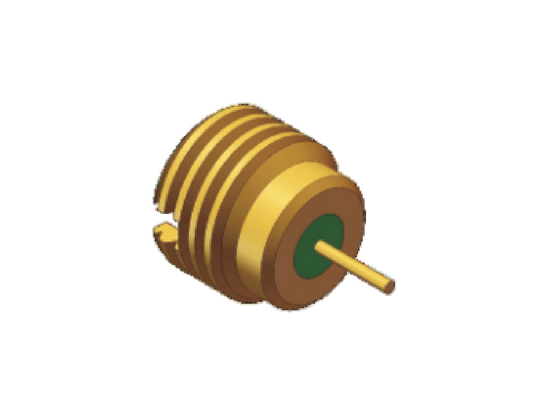

50Ω Hermetic glass dielectric SMPM Male Full Detent Bulkhead RF Coaxial Connector up to 40GHz
SMPM Coaxial Connector – Miniature High-Shield RF Interconnect for High-Speed Data Transmission. Our SMPM coaxial connector is specially designed to meet compact small-form-factor packaging demands, delivering fully shielded RF interconnect solutions for high data rate, high-frequency signal applications.Boasting outstanding shielding performance, this miniature SMPM connector effectively reduces electromagnetic signal interference and loss, maintaining stable, optimal high-speed signal transmission performance. Matched with an SMPM female to female adapter, the SMPM RF connector forms a reliable board-to-board connection assembly. It can automatically offset radial and axial misalignment errors generated during PCB installation, greatly improving assembly tolerance and connection stability for compact electronic modules.
Ideal for aerospace, microwave test equipment, high-speed communication, mini radar and miniaturized wireless distribution systems.
Key Features
- Physical Separation: Isolates spaces at both connector ends (e.g., device interior/exterior or separate cavities) to prevent electromagnetic interference and environmental effects (dustproof, waterproof)
- Stable Fixation: Secures connector position against vibration or insertion/removal forces, maintaining consistent signal transmission
Product Specifications
| Item | Value |
|---|---|
| Product Name | SMPM Male Bulkhead Connector |
| Model | SSMP-JYD18 |
| Frequency Range | 0.3MHz-40GHz |
| Impedance | 50Ω |
| Rated Voltage | 170V |
| DWV | 500V |
| Insulation Resistance | ≥5000MΩ |
| Center Conductor | Kaval Alloy, Gold Plating |
| Outer Conductor | Kaval Alloy, Gold Plating |
| Insulation Dielectric | Glass |
Product Outline Dimensions (Screw M4 x 0.5-6g, Unit: mm)
Note 1: Hermetic | Note 2: Engagement Depth 1.4 | Note 3: Engagement Depth 2.11
Alternative Screw Model (M3.5 X 0.35-6g)
Our threaded locking series connectors feature multiple positioning platforms for secure board mounting and locking with compatible products.
Note 1: Hermetic | Note 2: Bonding Surface | Note 3: Engagement Depth 2.11
Applications
- Microwave communication systems
- Measurement equipment
- Aerospace applications
- Radar systems
- Electronics fields
Elite Electronics manufactures SMPM connectors using premium materials and rigorous quality control processes to ensure exceptional durability and reliability in extreme environments.
Packaging & Shipping
Each Hermetic glass dielectric SMPM Male Full Detent Bulkhead RF Coaxial Connector up to 40GHz is carefully packaged in protective cartons to ensure safe transit. We use reliable courier services with tracking numbers provided for all shipments.
For model availability and additional series options, please contact us at sales3@xa-elite.com.cn.
Note: While some models are in stock, all catalog-listed models can be produced quickly upon request.
