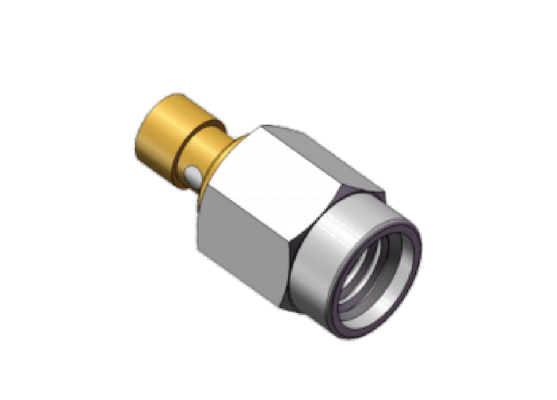

50 Ω 18GHz Mini SMA Male SSMA RF Coaxial Connector Mating Cable CXN3506 MF108A
|
商品の詳細:
お支払配送条件:
|
詳細製品概要
| 製品名: | SSMA オス ケーブル コネクタ | モデル: | SSMA-J506G |
|---|---|---|---|
| 周波数範囲: | 0.3MHz～18GHz | インピーダンス: | 50Ω |
| DWV: | 750V | 絶縁抵抗: | ≧5000MΩ |
| 中心導体: | 銅合金、金メッキ | 外部導体: | ステンレス鋼、不動態化 |
| 交尾ケーブル: | CNX3506、MF108A | 絶縁体: | PTFE |
| サンプル: | 在庫あり | ||
| ハイライト: | 50 Ω 18GHz SMA male connector,SSMA RF coaxial connector MF108A,Mini SMA mating cable CXN3506 |
||
50Ω 18GHz SSMA Male Mini SMA RF Coaxial Connector Mating for Cable CXN3506,MF108A (Cable OD 2.3mm)
High-Frequency Performance up to 18GHz
The SSMA Series RF coaxial connector is a miniaturized version of the SMA connector, designed to be 30% smaller while maintaining excellent performance characteristics. Featuring a threaded interface (10-36UNF-2) and 50Ω characteristic impedance, these connectors support frequencies up to 30GHz.
Key Feature:
- Compact design - 30% smaller than standard SMA connectors
- Wide frequency band operation up to 30GHz
- High reliability for demanding applications
- Available in multiple configurations: straight, right angle, bulkhead, and flange mount options
- Stainless steel screw sleeve/barrel for durability
Interface of SSMA RF Coaxial Connectors
Mini SMA Plug RF Coaxial Cable Connector Dimenstion:
Model No.: SSMA-J506G ( mating cable CXN3506, MF108A, Cable OD 2.3mm)
Model:SSMA-J506G-2 ( mating cable CXN3506, MF108A, Cable OD 2.3mm )
Model:SSMA-J506G-4 ( mating cable CXN3506, MF108A, Cable OD 2.3mm )
Applications
Xi'an Elite Electronics specializes in systematic interconnection solutions for demanding industries including:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication systems
- Measurement instruments
- Electronics applications
Packaging & Shipping
Each SSMA RF Coaxial Connector is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
