Right Angle SSMA / Mini SMA Female / Jack RF Coax Connector 4 Leg Through Hole Solder PCB Up to 18GHz
|
|
商品の詳細:
お支払配送条件:
|
詳細製品概要
| 製品名: | 直角 SSMA メス マイクロストリップ コネクタ | モデル: | SSMA-KWHD |
|---|---|---|---|
| 周波数範囲: | 0.3MHzから18GHz | インピーダンス: | 50Ω |
| 定格電圧: | 250V | DWV: | 750V |
| 絶縁抵抗: | ≥5000MΩ | 中心導体: | 銅合金 金属 |
| 外部導体: | 銅合金 金属 | 台紙方法: | 4 本足の貫通穴はんだ |
| 絶縁体: | PTFE | ||
| ハイライト: | Solder PCB SSMA Connector,Mini SMA RF Coax Connector,Right Angle SSMA RF Coax Connector |
||

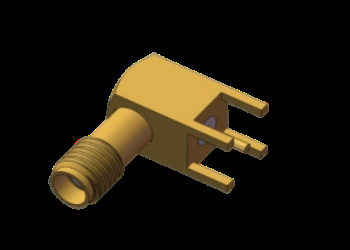

Right Angle SSMA / Mini SMA Female RF Coaxial Connector 4 Leg Through Hole Solder PCB Up to 18GHz
Product Specifications
| Items | Value |
|---|---|
| Product Name | Right Angle SSMA Female PCB Mount Connector |
| Model |
SSMA-KWHD
|
| Frequency Range | 0.3MHz-18GHz |
| Impedance | 50Ω |
| Rated Voltage | 250v |
| DWV | 750V |
| Insulation Resistance | ≥5000MΩ |
| Center Conductor | Copper Alloy, Gold Plated |
| Outer Conductor | Copper Alloy, Gold Plated |
| Mount Method | 4 Leg Through Hole Solder |
| Insulators | PTFE |
Product Overview
The SSMA series RF coaxial connectors are compact versions of the SMA interface standard, approximately 70% the size of traditional SMA connectors. SSMA connectors we have structure of right angle flange mount, straight flange mount, right angle through hole PCB solder, straight through hole PCB soder, bulkhead screws connect. These connectors feature:
- Compact size with wide frequency bandwidth
- Superior mechanical and electrical performance
- High reliability in demanding applications
- Threaded standard (10-36UNF-2)
- Characteristic impedance of 50Ω
- Frequency operation up to 30GHz
Interface Dimensions
SSMA / Mini SMA RF Coaxial Connector 4 Leg Through Hole Solder PCB Dimensions
Outline dimensions for the SSMA-KWHD (Unit: mm).
Other Model SSMA 4 Hole Flange Mount RF Coaxial Connector with 4 leg through hole mount
Applications
Ideal for high-precision microwave signal transmission in:
- Microwave communication systems
- Measurement equipment
- Aerospace applications
- Radar systems
- Electronics fields
Packaging & Shipping
Packaging: Each SSMA flange mount connector is carefully packaged in protective cartons to ensure safe transit. Shipping: We use reliable courier services with tracking numbers provided for all shipments.
Shipping: We use reliable courier services with tracking numbers provided for all shipments.Note: For other similar flange mount connector models, please check our catalog. While some models are in stock, all can be produced quickly for the model on catalog.
